MM SPOTiFY v1000 for Live Streaming

This extension adds the flexibility and controllability of manipulating your Spotify player through commands and/or with the push of a button!

Listeners can submit song requests in chat via artist/song, or they can drop a Spotify link and accomplish the same thing. With this extension, each action is completely independent, meaning you can have your volume automatically adjust when you change scenes, pause the music when you switch to just chatting, or tie a channel point redeem to playing a specific song...the possibilities really are endless!

How-To Set Up Spotify for Livestreaming Video Tutorial

Obtaining your Spotify API Key

Go over to the Spotify Developer website and sign in, or create an account. Once you've signed in, follow the steps below.

Step 1:

Click your profile in the top right and then on the 'Dashboard' drop-down.

Step 2:

Click on the 'Create App' button.

Step 3:

The required fields are highlighted in red below. The 'App Name' can be whatever you want it to be, and 'App description' can be left blank. The 'Redirect URI' MUST match this http://127.0.0.1:1400/spotifyAuth/. Lastly, don't worry about checking any of the boxes, except for agreeing with the terms. Press 'Save' and move to the next step.

Step 4:

Press the 'Settings' button to be taken to the settings of your newly created app.

Step 5:

Press the 'Show client secret' button to expand the field and copy both the 'Client ID' and the 'Client Secret' to paste into Streamer.bot. Once both are copied, you may close out of your browser. (Don't use the Client ID / secret from this screenshot (I've already deleted them))

Setting up the Spotify for Livestreaming Extension

Import into Streamer.bot

Press the Import button on Streamer.bot and drag the previously downloaded file into the 'Import String' box. You will be importing 21 Actions, 2 Queues, and 19 Commands.

Press the Import button on the bottom of the 'Import Actions' pop out window, and then press the 'Ok' button acknowledging the commands are set to 'Disabled' by default.

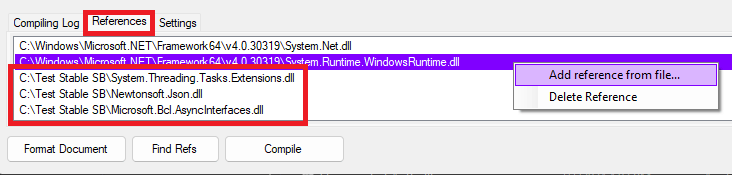

Manually add the References for C# into Streamer.bot

On the 'Spotify Auto Runner', 'Spotify Controls', and 'Spotify Initialization' Actions, you need to double-click on the 'Execute Code' Sub-Actions. When they pop open, select the 'References' tab and then Right-Click and select 'Add Reference from file...'.

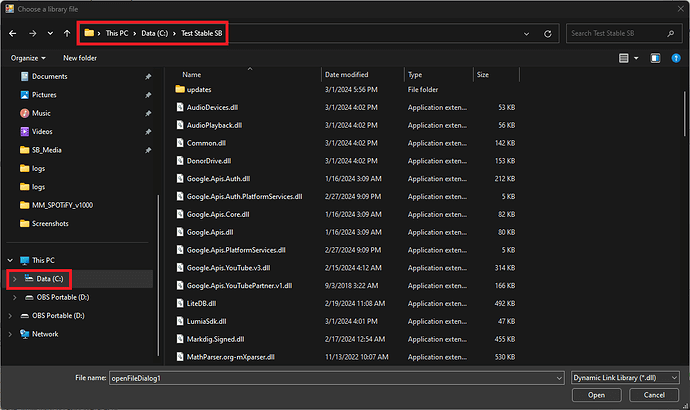

On the pop-out window, select your Streamer.bot folder and then add each of the following, one at a time:

• System.Threading.Task.Extensions.dll
• Newtonsoft.Json.dll
• Microsoft.Bcl.AsyncInterfaces.dll

After you add the new files, delete the original 3 that were in your folder, press Compile to ensure you get 'Compiled Successfully'! Once you get that message, you can press 'Save and Compile' and then head on over to your chat!

Initializing Spotify Extension for Live Streaming

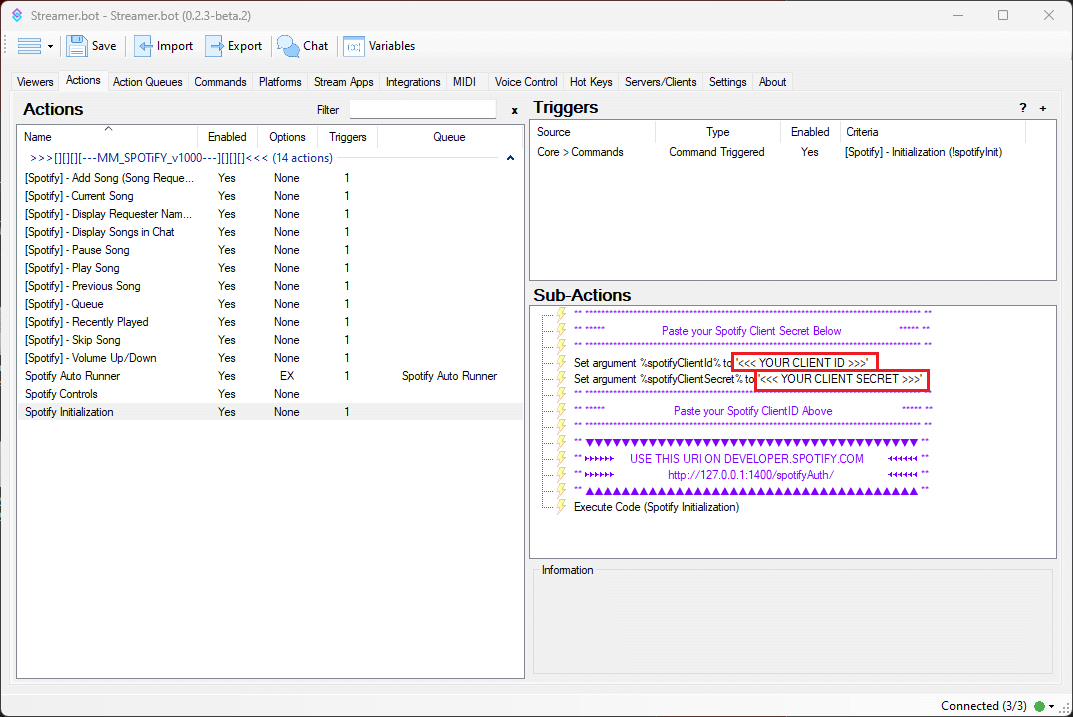

Click on the 'Spotify Initialization' Action and past your 'Client ID' and 'Client Secret' that you copied earlier from your Spotify app to it's respective argument.

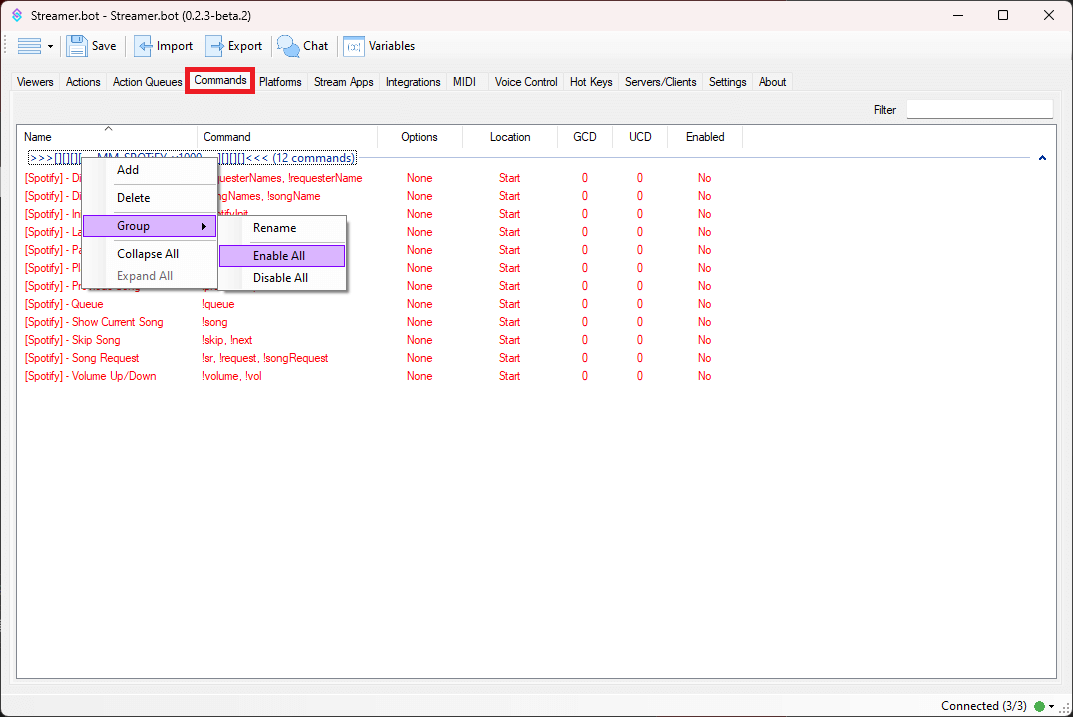

Navigate to your 'Commands' Tab, right-click on the group name, and 'Enable All'.

Open up your chat window and run the initialization command: !spotifyInit.

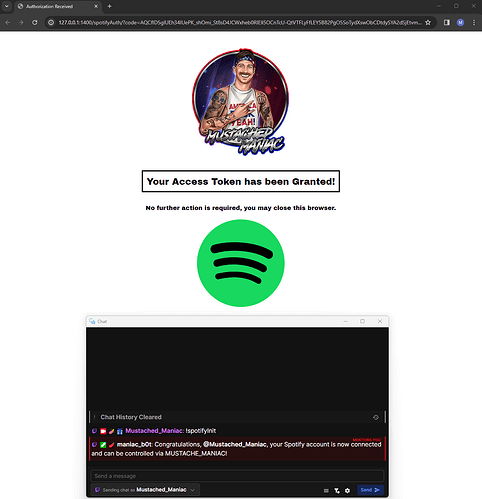

Upon successful initialization, you will be greeted by this really AWESOME screen and a friendly chat message that has your current PC name listed for Spotify control.

Spotify Live Streaming Extension Available Controls

All of the commands listed below are NOT case-sensitive and can be changed to your likings for your stream/community. For example, somebody that plays a lot of Marbles on Stream may not want to keep !play.

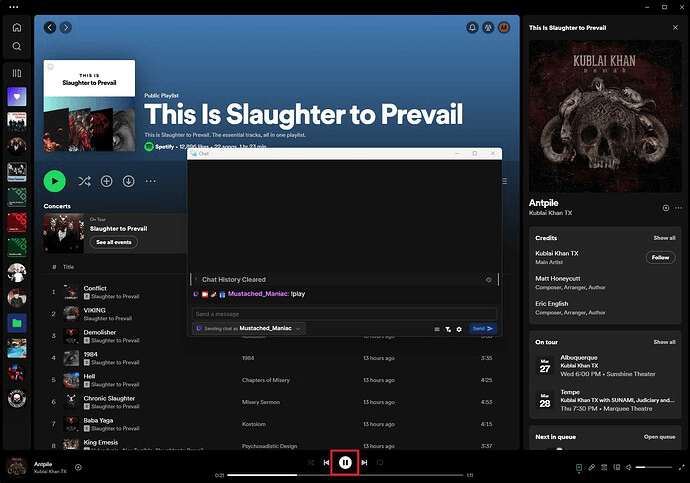

!play Command for Spotify Live Streaming

Command Aliases: None
Modifiers: None
Notes: It has ONE job...

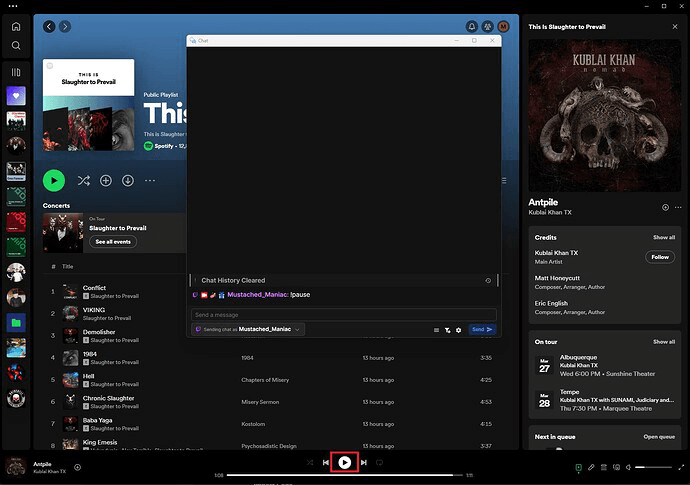

!pause Command for Spotify Live Streaming

Command Aliases: None
Modifiers: None
Notes: Sometimes you just need to pause the music...

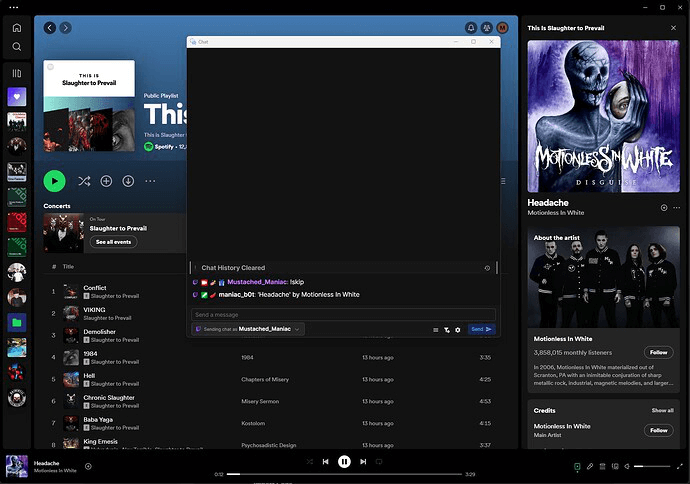

!skip Command for Spotify Live Streaming

Command Aliases: !next
Modifiers: None
Notes: Who requested that song? Let's get rid of it...

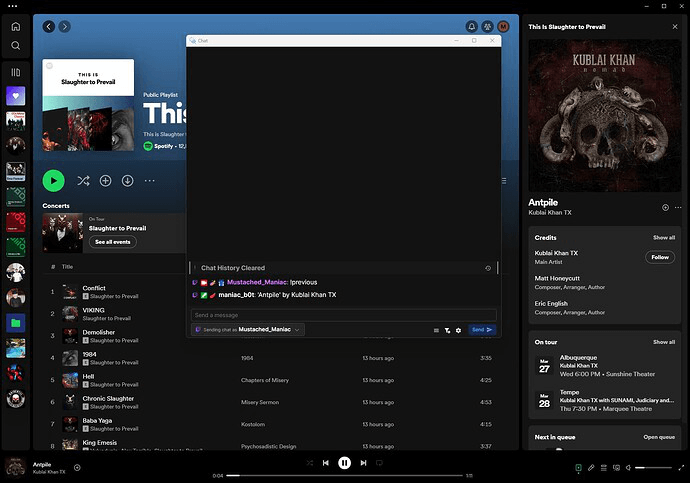

!previous Command for Spotify Live Streaming

Command Aliases: !prev
Modifiers: None
Notes: Maybe that last song was a banger?!

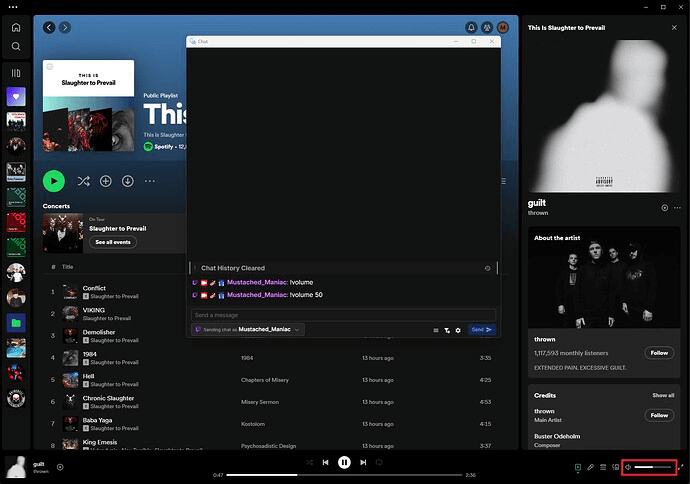

!volume Command for Spotify Live Streaming

Command Aliases: !vol
Modifiers: 0-100
Notes: This command accepts an argument %volPercent% (disabled by default and name cannot be changed) for use in other Actions. IF the argument is enabled and you use !volume with no numbers, it'll set the volume at that value.

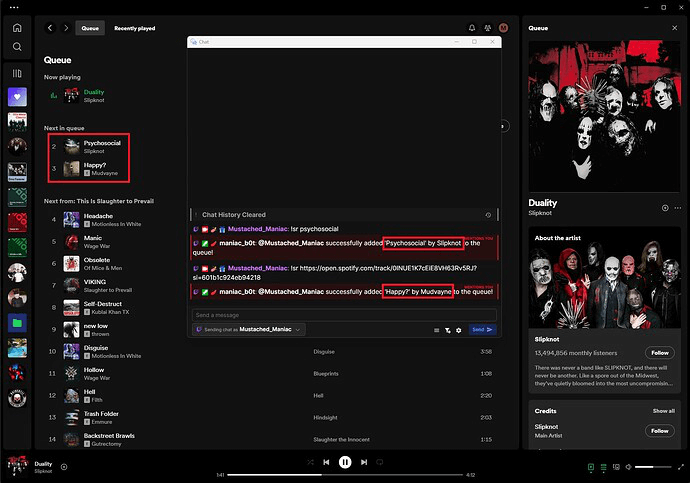

!sr (Song Request) Command for Spotify Live Streaming

Command Aliases: !request, !songRequest
Modifiers: None
Notes: This accepts either song titles, artist and song titles, or Spotify track links (will send a message in chat telling the requester it can't accept album, artist, or playlist links).

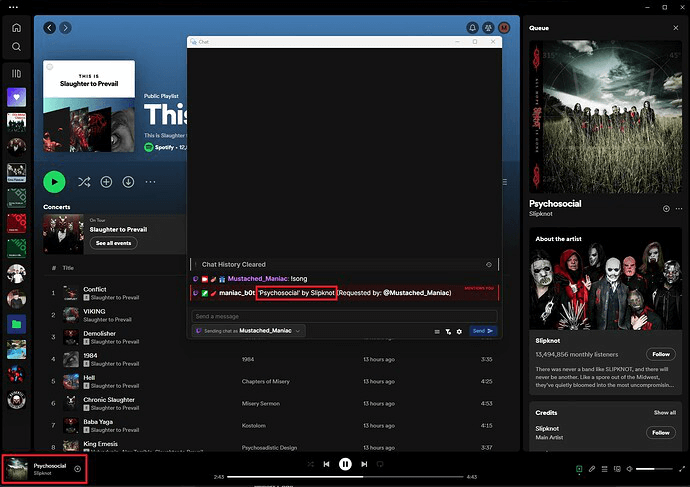

!song (Now Playing) Command for Spotify Live Streaming

Command Aliases: None
Modifiers: None
Notes: Even if song names are disabled via the !songNames command, you can manually view the currently playing 'Song' by Artist. It will include the requester name if that is enabled!

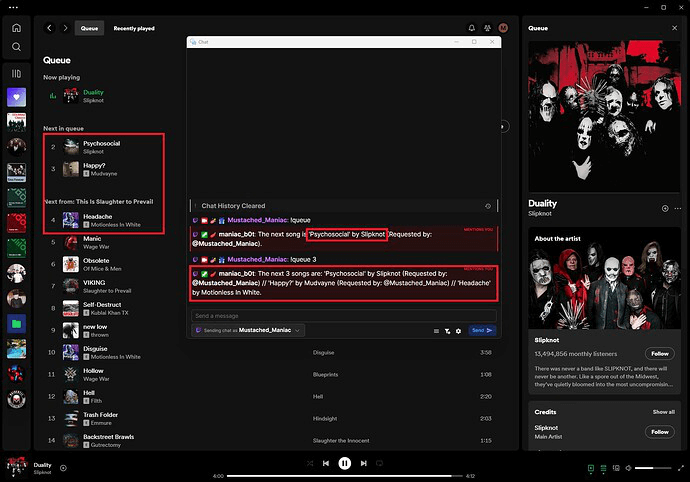

!queue Command for Spotify Live Streaming

Command Aliases: None
Modifiers: 1-50
Notes: If left blank, it will return the next one. When used with a number, it'll return that many songs (i.e. !queue 5 would return the next 5 songs). If the number of songs requested would exceed the 500 character limit for a Twitch message, it'll say that in chat instead.

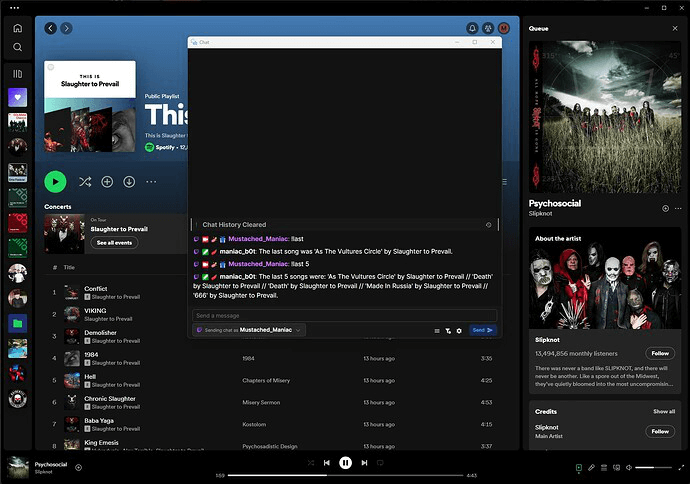

!last Command for Spotify Live Streaming

Command Aliases: !lastSong, !lastSongs
Modifiers: 1-50
Notes: Just like the !queue command, if left blank, it will return the last played song. When used with a number, it'll return that many songs (i.e. !last 3 would return the previously played 3 songs). If the number of songs requested would exceed the 500 character limit for a Twitch message, it'll say that in chat instead.

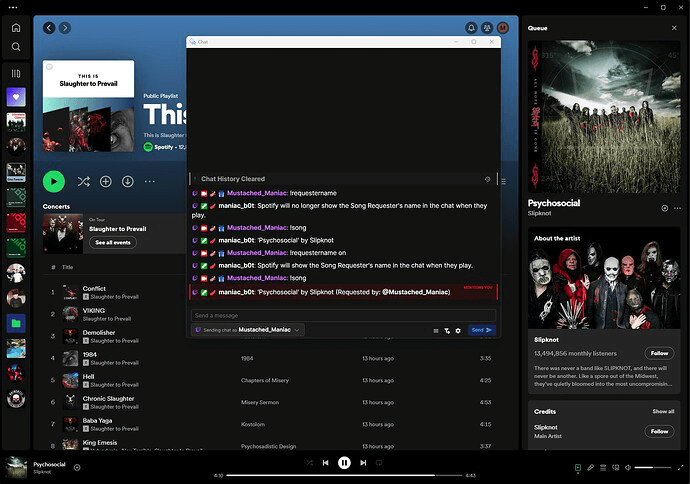

!requesterName Command for Spotify Live Streaming

Command Aliases: !requesterNames
Modifiers: On/Off, Yes/No, Y/N, True/False
Notes: This can be used as a toggle (i.e. if you type !requesterName and they're currently on, it will turn them off). Conversely, you can explicitly use one of the modifiers !requesterNames on.

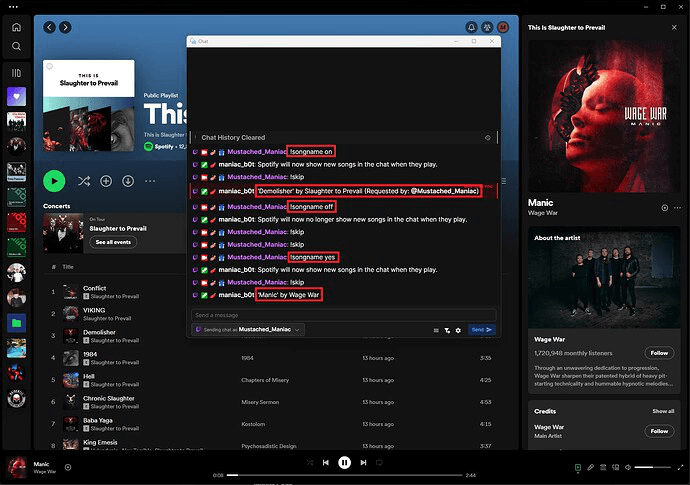

!songName Command for Spotify Live Streaming

Command Aliases: !songNames
Modifiers: On/Off, Yes/No, Y/N, True/False
Notes: This only affects the ability to show the 'Song' by Artist every time a NEW song plays and operates independently of the !song command. This can be used as a toggle (i.e. if you type !songName and they're currently on, it will turn them off). Conversely, you can explicitly use one of the modifiers !songNames on.
